Checkline Checkline CAP-TSTM-50i Motorized Cap Torque Testing System, Cap. 50 lbin / 580 kgFmm / 570 Ncm, 220V

Checkline CAP-TSTM-50i Motorized Cap Torque Testing System, Cap. 50 lbin / 580 kgFmm / 570 Ncm, 220V Review

Checkline CAP-TSTM-50i Motorized Cap Torque Testing System, Cap. 50 lbin / 580 kgFmm / 570 Ncm, 220V Feature

• Speed Range: 0.3-8.6 RPM (4-52/s)
• Speed Accuracy: 5% (Optional Digital Speed Control for higher accuracy)
• Throat: 4.10" (104 mm)
• Maximum Cap Diameter: 3.5" / 89mm
• Manual Adjustment: 12/knob rev
• Maximum Silder Travel: 15.5" (394 mm)
• Slider Travel Rate: 1.047" (26.6 mm) / level rev
• Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests
• No speed variation with load
• Torque plate with tapped holes for grip and fixture mounting
• Includes NIST Calibration Certificate
• 100 In-Lb Capacity
• Optional Digital Angle Indicator Displays cw or ccw angle in 0.1 resolution for approximately 278 rotations, resettable with "zero" button

Checkline CAP-TSTM-50i Motorized Cap Torque Testing System, Cap. 50 lbin / 580 kgFmm / 570 Ncm, 220V Overview

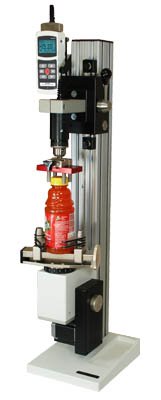

The CAP-TSTM-50i Motorized Cap Torque Testing System, Cap. 50 lbin / 580 kgFmm / 570 Ncm, 220V is designed to perform open and closure torque measurements on caps, lids, etc... This Cap Torque Testers features a motorized clockwise and counterclockwise rotation that allows for highly precise and repeatable tests. Its Versatile modular design allows the stand to be configured with a variety of gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.
